Tynemouth Station showing 'through' lines and (extreme right) south bay platform |
Why was Tynemouth Station so big?
Tynemouth station looked
like a mainline junction with bay platforms for branch lines at each end and
avoiding lines between the through platforms for trains not stopping at the
station. In fact the design probably
says more about the history of the railway at Tynemouth rather than its actual
operation. Tynemouth was not a junction nor was there any express service
passing through the station.
The clue to interpreting
the station is to be found in the official designation (by the railway
companies and later by British Railways) of the line through Tynemouth as the
‘Tynemouth Branches’ rather than the coast 'loop' or 'circle' line as most
passengers would have called it.
In other words Tynemouth is best understood as a terminus rather than a
through station.
The station was built by
the North Eastern Railway in 1882 to
replace two previous terminus stations. The Newcastle
and North Shields Railway had opened its station in Oxford Street in 1847
for a service from Newcastle via
Wallsend. The Blyth and Tyne Railway had opened in Tynemouth Road in 1861 for a service from Morpeth via Monkseaton. In 1864 the service from
Morpeth to Tynemouth was replaced by one from Newcastle (New Bridge Street) via Benton.
It is likely that when the
NER was planning its new station at Tynemouth it imagined that a significant
number of trains from Newcastle would terminate at Tynemouth (as all had
previously done) - together with others from a reopened line to Morpeth and the
new Riverside branch. For these three bay platforms were built at each end of
the station.
In fact the through
platforms at Tynemouth completely transformed the operation of the ‘branches’
and rendered the bay platforms largely redundant. Through services meant that a large number of passengers on
any train leaving Cullercoats or North Shields would probably be heading for
stations beyond Tynemouth.
Terminating trains at Tynemouth would have made little sense and the
timetables suggest very few services actually did start or finish there.
When services from Morpeth
and Blyth were restored in 1904 traffic was light and better kept out of the
way of the intensive electric service by terminating at Monkseaton. In 1911 there were only two return journeys
a day from Blyth to Tynemouth and none from Morpeth. By the 1930s there were none. Interestingly when the proposed
electric line to Colywell Bay (Seaton Sluice) was authorised (1911) there seems
to have been no suggestion that the service would run beyond Monkseaton to the
north end bay platforms at Tynemouth.
It seems likely, therefore, that these platforms saw very little use
throughout their existence.
As for the three south end
bay platforms, apart from a limited number of trains for the Riverside branch,
they proved more valuable for fish and parcels rather than passenger traffic.
In early years Tynemouth
was the destination of excursion trains that made some use of the bay
platforms, but with the growth of Whitley Bay as a resort it’s more likely that
these used the through platforms in both directions. In any case the bay platforms were not primarily intended
for excursion traffic and the station could have probably managed without them.
The tracks that ran between
the through platforms were not the ‘avoiding’ tracks they appeared to be. There
were never any ‘fast’ passenger trains passing through Tynemouth without
stopping. If Tynemouth was the
terminus of the ‘Branches’ and apparently the most important station on the line
why should it alone have such tracks?
The real purpose of these tracks was to provide access to the former
Blyth and Tyne station that had now become a coal depot and keep the shunting
of trains to and from there away from the passenger lines and platforms. They were electrified, but again the
timetables reveal only very limited use by electric trains running as empty
stock to begin peak hour services to Newcastle from stations beyond Tynemouth. Stock for excursion trains for Whitley Bay were also held there to await a gap in the elecrtic service.
For more pictures of Tynemouth station see http://www.disused-stations.org.uk/t/tynemouth_fourth/index.shtml and http://www.railways.whblakey.co.uk/index.php?page=tynemouth
|

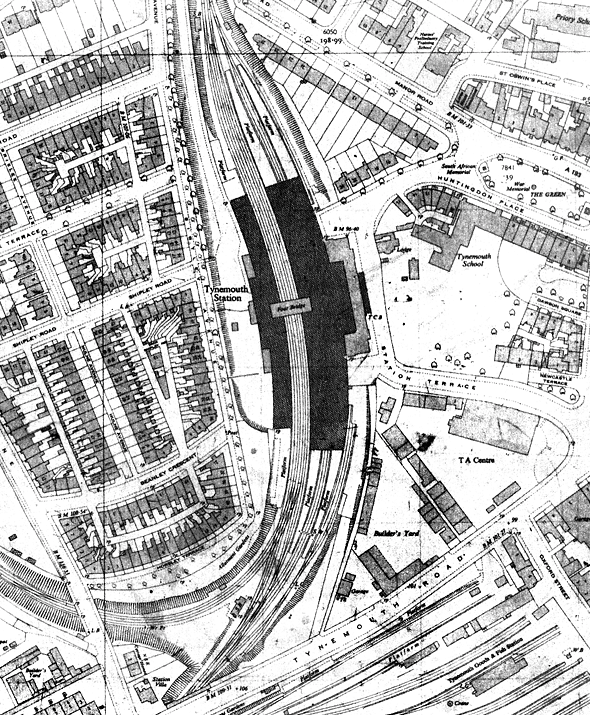

1961 OS map |
|
Tynemouth North Signal Box track diagram |
